V Port Industrial Ball Valve in Segmented Reduced Bore, Alloy Steel
PRODUCT INTRODUCTION
1. V Port & Segmented Ball Valve Introduction
TonJiang V-notch Segment Ball Valve is a control valve designed to handle most fluids. V port ball valve can be used for most pulp and paper process applicaƟons as well as other applications involving fibers, particles, dirty or even corrosive media.
2. Technical Features
V-notch provides equal percentage flow control
Uni-body prevents external leakage
Durable metal seat
Soft seat TFM1600 where metal seat is unsuitable Live loaded packing
Protected peek bearing ISO 5211
Direct-Mounting for easy automation
Extremely low actuator torque
3. Technical Specifications
Reduced bore quarter-turn valve
ANSI Class 600 pressure raƟng
Size: 1-1/2” ~ 4” (DN32 ~ DN100) Stainless Steel, Carbon Steel, Alloy materials available
-4°F ~ 536°F (-20°C ~ 280°C) for metal Seat
-4°F ~ 392°F (-20°C ~ 200°C) for soft Seat Face to Face acc. to ISA-S75.04 Short version
Inspection acc. to API 598 or EN12266-1 where applicable
Tightness test acc. to ANSI/FCI 70.2 Class IV for metal seat

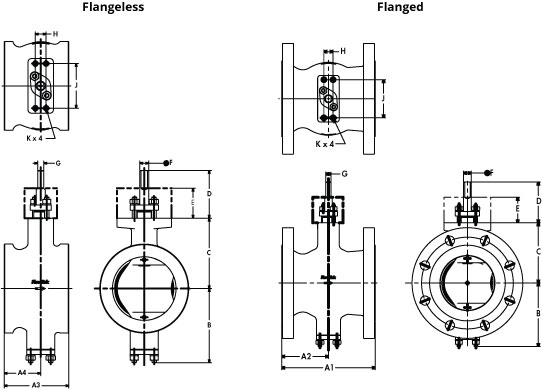

4. V Port & Segmented Ball Valve Drawing and Datasheet
| DIMENSIONS - IMPERIAL - CLASS 150/300 |
| Size | Flanged | Flangeless | B | C | D | E |
| in | A1 | A2 | A3 | A4 |
| 1 | 4 | 2 | 2 | 1 | 3 | 2.8 | 3.1 | 2.1 |
| 1.5 | 4.5 | 2.2 | 2.4 | 1.4 | 3.3 | 3.1 | 3.1 | 2.1 |
| 2 | 4.9 | 2.4 | 3 | 1.7 | 3.9 | 3.8 | 3.3 | 2.1 |
| 3 | 6.5 | 3.2 | 3.9 | 2.2 | 4.8 | 4.6 | 3.3 | 2.1 |
| 4 | 7.6 | 3.8 | 4.5 | 2.6 | 5.2 | 4.9 | 3.3 | 2.1 |
| 6 | 9 | 4.5 | 6.3 | 3.7 | 7.6 | 7.3 | 3.6 | 2.4 |
| 8 | 9.6 | 4.8 | 7.9 | 4.8 | 8.4 | 8.1 | 4.3 | 2.3 |
| 10 | 11.7 | 5.8 | 9.4 | 5.8 | 10.1 | 9.7 | 4.3 | 2.3 |
| 12 | 13.3 | 7.2 | — | — | 11.5 | 11.1 | 4.3 | 2.3 |
Please feel free to contact with us at angela@tjfmcn.com or filling up an enquiry form instructed at the bottom.
You will get an effective response within 24 hours from TongJiang Team.
